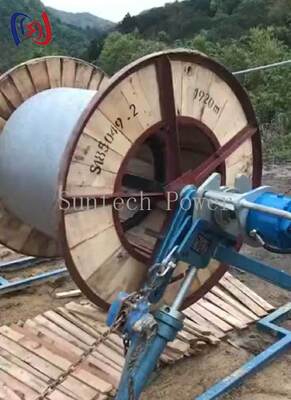

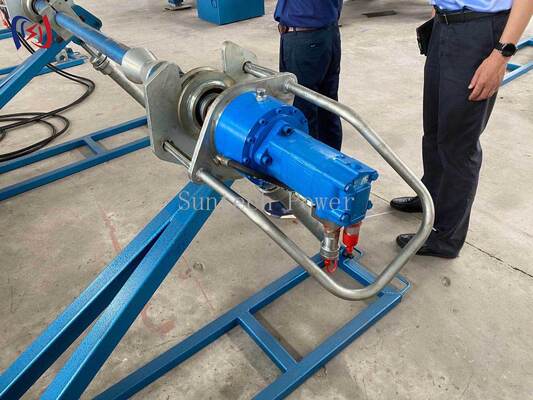

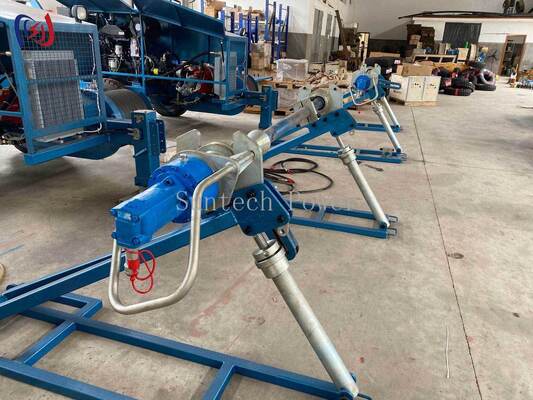

Hydraulic Conductor Reel Stand with 5000kg Capacity and 45rpm Max Speed for Safe Handling

1 CÁI
MOQ
negotiable
giá bán
Hydraulic Conductor Reel Stand with 5000kg Capacity and 45rpm Max Speed for Safe Handling
Đặc trưng Bộ sưu tập Mô tả sản phẩm Yêu cầu báo giá
Đặc trưng
Thông số kỹ thuật
Tên: Giá đỡ cuộn dây dẫn thủy lực
Mã hàng: 15151
Người mẫu: SIPZ-5H
Tốc độ tối đa: 45rpm
Cân nặng: 270-350kg
Bảo hành: 1 năm
Làm nổi bật:

Hydraulic Lifting Conductor Reel Stand

,

5000kg Capacity Cable Reel Stand

,

45rpm Max Speed Conductor Drum Stand
Thông tin cơ bản
Nguồn gốc: Ningbo
Hàng hiệu: Sunatech
Chứng nhận: ISO
Số mô hình: SIPZ-5H
Thanh toán
chi tiết đóng gói: hộp gỗ dán
Thời gian giao hàng: 3-7 ngày
Điều khoản thanh toán: L/C,T/T
Khả năng cung cấp: 1000 PC/tháng
Mô tả sản phẩm
Heavy Duty Hydraulic Conductor Reel Stands for Safe Handling of Large Overhead Conductor Reels
Heavy Duty Hydraulic Conductor Reel Stands are engineered specifically for the demanding task of handling large, heavy reels of overhead electrical conductor used in transmission and distribution line construction. These specialized stands provide a powerful, safe, and efficient alternative to manual handling and basic mechanical jacks. The integrated hydraulic system allows a small crew to effortlessly lift massive conductor reels to the optimal working height, ensuring a smooth and controlled pay out during the critical stringing process. Designed for the unique challenges of power line work, these stands enhance safety, protect valuable conductor assets from damage, and significantly improve the productivity and precision of overhead line installation projects.
Technical Specifications
Item number 15151 15152
Model SIPZ-5H SIPZ-7H
Applicable reel diameter (mm) Φ1250～2240 Φ1250～2500
Max width of coil (mm) 1400 1400
Diameter of axle hole (mm) Φ80-125 Φ80-125
Maximum weight (kg) 5000 7000
Max working torque (N.m) 1200 2000
Max Speed (rpm) 45 45
Axle diameter Φ76 Φ76
Weight (kg) 270 350
Length of hydraulic tube 13 13
Key Features & Benefits
  • Hydraulic Lifting for Heavy Reels The hydraulic lifting mechanism effortlessly raises extremely heavy conductor reels—often weighing several tons—to the ideal working height. This system eliminates dangerous manual lifting, allowing a single operator to safely position a reel with minimal effort.
  • Exceptional Stability for Stringing Operations Built with heavy gauge steel frame and wide reinforced base, these stands provide unwavering stability during stringing processes, preventing shifting or tipping.
  • Smooth and Controlled Conductor Pay Out High capacity bearings allow the reel to rotate smoothly with minimal resistance, maintaining consistent tension and preventing jerking, tangling, and kinking.
  • Enhanced Worksite Safety Dramatically improves safety by eliminating hazardous aspects of reel handling, preventing back injuries, and minimizing risks of conductors whipping or snapping.
  • Optimal Reel Height Adjustment Hydraulic system allows precise height adjustment to align with stringing blocks and tensioner, optimizing conductor path and reducing friction.
  • Protection of Valuable Conductor Keeps reels elevated and clean, preventing ground contact damage and preserving the conductor's mechanical strength and electrical properties.
  • Durable and Low Maintenance Design Constructed from high-strength, corrosion-resistant materials to withstand harsh outdoor construction conditions with minimal maintenance requirements.
  • Improved Operational Efficiency Quick and easy setup with hydraulic power reduces crew time on preparatory work and allows for faster stringing speeds.
  • Essential for Modern Power Grid Construction Standard equipment for professional utility work, representing commitment to safety, quality, and efficiency in electrical infrastructure construction.
Hydraulic Conductor Reel Stand with 5000kg Capacity and 45rpm Max Speed for Safe Handling 0
Investing in a high quality Hydraulic Conductor Reel Stand is a direct investment in the safety of your personnel, the protection of your assets, and the overall productivity of your overhead line projects.
