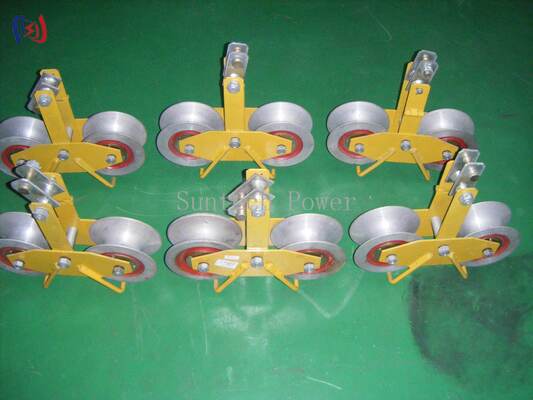

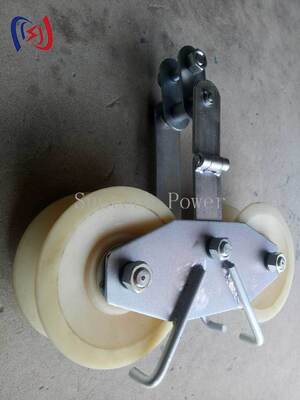

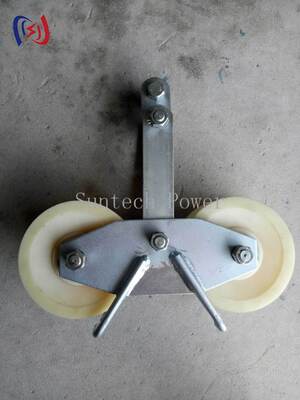

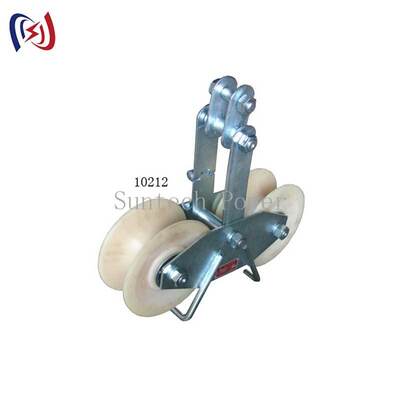

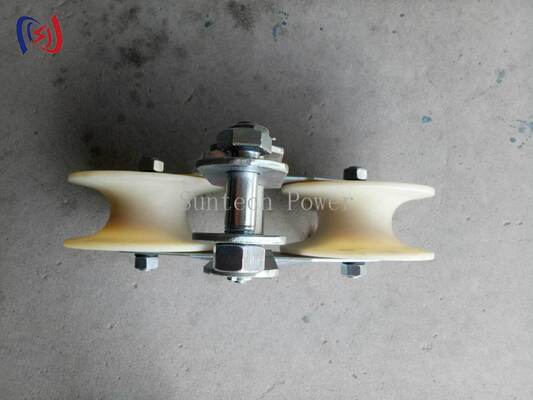

Heavy Duty High Capacity Tandem Sheave Stringing Block with 25KN Rated Load for Transmission Lines

Heavy Duty Tandem Sheave Stringing Block for High Capacity Transmission Line Conductor Installation

• Essential for Simultaneous Bundle Conductor Installation:​ The primary purpose of the Tandem Sheave Block is to enable the concurrent pulling of all subconductors in a bundle. Instead of stringing each conductor separately with a single-sheave block—a time-consuming and inefficient process—this block allows the entire bundle to be installed in a single, coordinated pull. This dramatically reduces total stringing time, minimizes crew exposure to energized lines or construction hazards, and significantly accelerates project timelines.

• Ensures Uniform Tension and Perfect Parallel Alignment:​ One of the greatest challenges in bundle conductor installation is maintaining identical tension and precise spacing between each subconductor. The tandem sheaves are precisely aligned on a common axle or frame. As the conductors are pulled, they pass through their respective sheaves, which forces them to pay out at exactly the same rate and maintain a constant, parallel relationship. This controlled alignment is fundamental to achieving the designed electrical characteristics (like impedance) and preventing issues like conductor clashing or uneven ice loading.

• Minimizes Conductor Damage and Abrasion:​ Each sheave in the tandem block is designed with a smooth, contoured groove that cradles the conductor. When multiple conductors are pulled through a single, misaligned sheave, they can scrape against each other, causing abrasion and damage to the sensitive outer strands. The tandem design isolates each conductor in its own dedicated sheave, eliminating inter-conductor contact and friction during the pull, thereby protecting the valuable conductor assets.

• Dramatically Improves Job Site Efficiency and Productivity:​ The efficiency gains are substantial. Pulling a quad bundle with a 4-sheave tandem block is approximately four times faster than pulling each conductor individually. This reduces the rental time for tensioning equipment, lowers fuel consumption, and allows the construction crew to complete the mechanical stringing phase much faster, freeing them up to move on to sagging, clipping, and other tasks.

• Engineered for High Load Capacity and Durability:​ Tandem blocks are built to handle the combined tensile force of multiple heavy conductors. They are constructed from high-strength aluminum alloys or steel with reinforced frames and high-capacity bearing systems. This robust construction ensures they can withstand the extreme loads without deformation or failure, providing reliable performance throughout the stringing process.

• Reduces Overall Project Cost and Complexity:​ While a tandem block represents a specialized investment, it pays for itself quickly on bundle conductor projects. The savings in labor, equipment time, and project duration far outweigh the tool's cost. It also simplifies project planning and execution by turning a complex, multi-stage pulling operation into a single, streamlined process.

• Critical for Meeting Modern Grid Capacity Demands:​ As the need to transfer more power over existing rights-of-way grows, utilities increasingly turn to bundle conductor configurations. The Tandem Sheave Stringing Block is the enabling tool that makes the construction of these high-capacity lines feasible and efficient. It is directly linked to building a stronger, more capable power grid.

• Enhances Safety by Reducing Required Pulls and Setups:​ Fewer individual pulls mean fewer opportunities for things to go wrong. Crews spend less time working directly with the tensioned conductor, and the overall site logistics are simpler. The controlled, simultaneous pull of the tandem block creates a more predictable and safer work environment compared to the repeated setup and takedown required for single-conductor stringing.

• A Proven Solution for High Voltage Line Construction:​ Tandem sheave technology is the industry-standard, proven method for installing bundle conductors. Its reliability and effectiveness are unquestioned among major utilities and transmission line contractors worldwide. Using this equipment is a mark of professional, high-quality construction practices.

• A Foundational Tool for Grid Modernization and Expansion:​ Investing in and utilizing Tandem Sheave Stringing Blocks is a commitment to building the advanced transmission infrastructure of the future. It empowers contractors to efficiently build the lines that will carry renewable energy, improve grid reliability, and meet the ever-growing demand for electricity.
